Condition : New
Steering : Left
Horsepower : 351 - 450hp
Emission Standard : Euro 2
Brand Name : SHACMAN
Place of Origin : Henan, China
Segement : Heavy truck
Market Segement : Mining transportation
Fuel Type : Diesel
Engine Capacity : > 8L
Transmission Type : Manual
Forward Shift Number : 12
Maximum Torque(Nm) : 2000-2500Nm
Cargo Tank Dimension : N/A
Cargo Tank length : ≥8m
Gross Vehicle Weight : 14700
Drive Wheel : 8X4
Passengers : 3
Rear Camera : None
ABS(Antilock Braking System) : Yes
ESC(Electronic Stability Control System) : Yes
Touch Screen : None
Window : Manual
After-sales Service Provided : Online support
Product name : SHACMAN HOWO China National Heavy Duty Truck Dump Truck
Color : Customer's Request
Wheel base : 3625+1350
Tire : 12.00R20
Brand : Shacman
Loading capacity : 30-70 Tons
Driving type : LHD RHD
Gearbox : SHACMAN
Horse power : 371
Capacity (Load) : 51 - 60t
Price : $5,000.00/units 1-9 units
Model | Shacman F3000 Dump Truck | ||
Driving type | 6x4 4x2 8x4 | ||
Weight | Complete kerb mass (kg) | 12160 | |
GVW (kg) | 32500 | ||
Dimensions | LxWxH (mm) | 7550x2490x3450 | |
Body size(mm) | 5600x2300x1100,1300,1500 | ||
Front/rear overhang(chassis) | 1525/1450 | ||
Wheel base (mm) | 3175+1400 | ||
Track width (mm) | 2036/1850 | ||
Engine | Brand | Weichai | |
Model | WP10.336 | ||
Power (kw/HP) | 247/336 | ||
Max. torque (N.m)/rpm | 1250/1200-1600 | ||
Displacement (L) | 9.726 | ||
Emission standard | Euro 3 | ||
Axles | Front axle | 7500kg | |
Rear axle | 16000kg,Double reduction driving axle with inter-wheel differential and differential lock | ||
Ratio | 5.262 | ||
Performance | Max. speed ( km/h) | 76 | |
Min. turning circle (m) | 15 | ||
Min. ground clearance (mm) | 314 | ||
Approach/Departure angle(°) | 28/30 | ||
Max. gradeability (%) | 32 | ||
Transmission | Brand | FAST | |
Model | 9JS135 | ||
Control type | Manual | ||
Gear shift | 9-forward and 1-reverse speeds |
![]() |

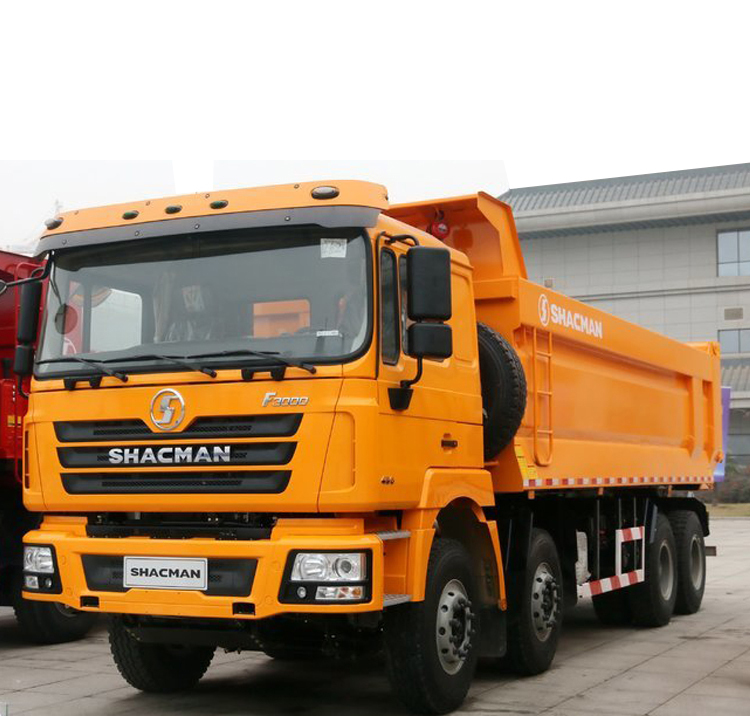

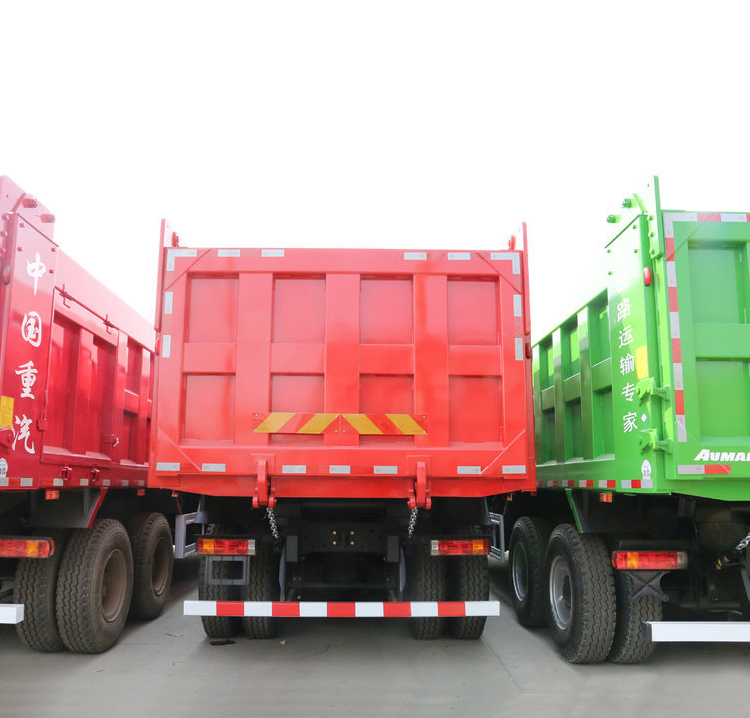

Left Steering National Heavy Truck 12 Forward Shift Dump Truck Cargo Loading Truck Images |
